Earthquake bracing and bolting are essential techniques used to fortify buildings against seismic activity, ensuring both safety and structural integrity. Foundation bolting secures the building’s wooden frame to its concrete foundation, while cripple wall bracing reinforces short walls to prevent collapse.

Introduction to Earthquake Bracing and Bolting

Earthquake bracing and bolting are crucial in construction for fortifying buildings against seismic activity. These measures are especially vital in areas prone to earthquakes, providing both safety and structural integrity.

Historically, the need for such measures has become evident through the extensive damage caused by past earthquakes. Older homes, particularly those built before 1980, are often most at risk since modern seismic safety standards were not in place during their construction.

The main techniques deployed include:

  • Foundation Bolting: This involves adding bolts to secure the wooden framework of a building to its concrete foundation. Two types of bolts are used:
  • Expansion Bolts: Cost-effective and ideal for newer homes with strong concrete.
  • Epoxy-Set Bolts: Suitable for older homes with weaker concrete.
  • Cripple Wall Bracing: Short wooden walls in the crawl spaces are reinforced with structural grade plywood, forming shear walls that add rigidity and prevent collapse.

Earthquake bracing and bolting are essential for minimizing damage, ensuring that homes stay intact and safe during seismic events. These methods represent a crucial part of modern construction practices in earthquake-prone areas.

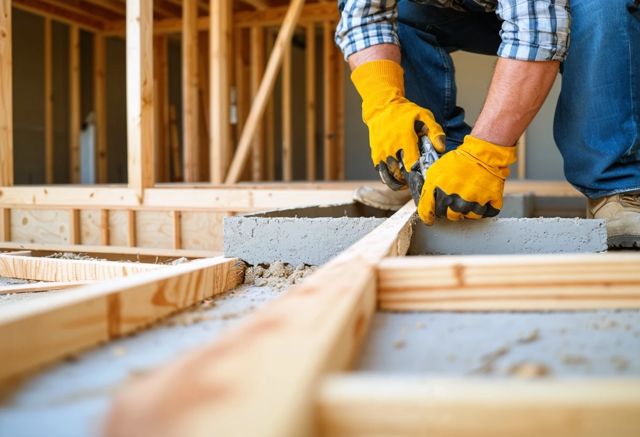

A construction worker bolting a wooden frame to a concrete foundation and reinforcing crawl spaces with plywood.

Types of Earthquake Bracing and Bolting Techniques

Strengthening structures helps prevent severe damage during seismic events.

Foundation Bolting: Foundation bolting secures a building’s wooden frame to its concrete foundation. This connection is essential to prevent the structure from sliding off its base during an earthquake. Key elements include:

  • Expansion Foundation Bolts: Ideal for strong, newer concrete.
  • Epoxy-set Foundation Bolts: Suitable for older, weaker concrete with better performance under uplift forces.
  • Plate Washers: Ensure secure clamping of the mudsill to the foundation.
  • Foundation Plates: Used when vertical clearance is insufficient.

Cripple Wall Bracing: Cripple walls, the short wood-framed walls in crawl spaces, are prone to collapse during earthquakes. Bracing these walls with structural-grade plywood transforms them into shear walls that effectively resist seismic forces. Additional components include:

  • Foundation Holdown Brackets: Secure shear walls to the foundation, preventing lifting or rolling.
  • Houses without Cripple Walls: Use Simpson UFP10 mudsill anchor plates or custom-made Angle Iron Struts.
  • Soft Story Situations: Homes with large openings require plywood bracing or engineered steel moment frames for added stiffness. To better understand the requirements for soft story retrofits, you can review this comprehensive guide on Soft Story Retrofit Requirements in Los Angeles.

Retrofitting homes with these techniques enhances earthquake resilience, safeguarding lives and reducing structural damage. Additionally, there are retrofit programs available in California that homeowners should be aware of, as outlined in the California Earthquake Retrofit Program.

Materials and Tools for Effective Seismic Retrofit

Materials and tools are vital to effective earthquake bracing and bolting. Key materials include brackets, anchors, and specialized bolts. These components reinforce structures to withstand seismic forces.

Brackets:

  • Provide crucial support to structural joints.
  • Typically made from steel or other durable metals.
  • Used to connect beams, columns, and walls.

Anchors:

  • Secure the structure to its foundation.
  • Prevent shifting and collapse during an earthquake.
  • Types include expansion anchors, epoxy anchors, and mechanical anchors.

Specialized Bolts:

  • Designed to handle seismic stress.
  • Connect elements like brackets and anchors securely.
  • Often made from high-strength steel.

Using the right tools is essential for installation:

  • High-torque impact wrenches for bolts.
  • Drills with masonry bits for anchors.
  • Measuring tools for precision placement.
  • Safety gear like gloves and eye protection.

These materials and tools ensure that buildings can better resist earthquake damage, protecting both property and lives. For more insights, check out Earthquake Ready Foundations in Los Angeles.

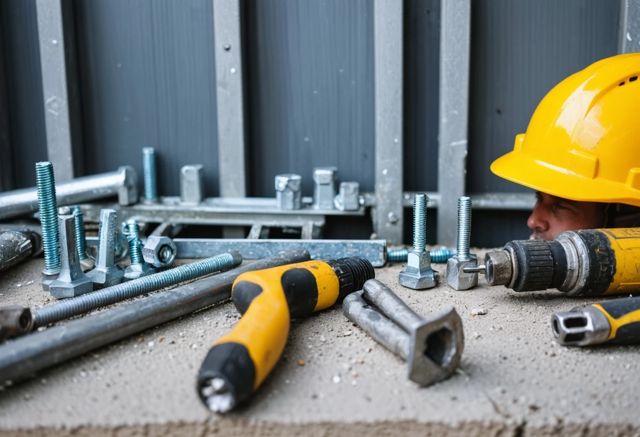

Steel brackets, anchors, and specialized bolts on a construction site, with tools like drills and impact wrenches, all set for seismic retrofit work

Case Studies and Success Stories

Analysis of Real-World Case Studies

One notable case involves a residential neighborhood that benefited from extensive foundation bolting and cripple wall bracing:

  • Foundation Bolting: Homes were retrofitted with expansion bolts and epoxy-set bolts.
  • Cripple Wall Bracing: Structural plywood was attached to framing, creating robust shear walls.

These measures ensured that the homes remained intact during a subsequent earthquake. This approach aligns with insights gathered from various historic buildings’ foundations.

In another instance, a commercial building without cripple walls used custom angle iron struts and mudsill anchor plates:

  • Custom Angle Iron Struts: Provided strong connections to resist both vertical and lateral movements.
  • Mudsill Anchor Plates: Anchored the building effectively, preventing seismic forces from causing significant damage.

Lastly, a residential complex with a soft story utilized engineered steel moment frames and plywood bracing to reinforce the lower levels:

  • Engineered Steel Moment Frames: Added strength to the structure.
  • Plywood Bracing: Offered additional support to the vulnerable lower areas. For a detailed guide on soft story retrofits, refer to Soft Story Retrofit in Los Angeles.

By implementing these advanced techniques, the buildings successfully withstood seismic activity, demonstrating the effectiveness of earthquake bracing and bolting. For more information about our services, visit Foundation Builders.

Residential neighborhood with retrofitted homes, showing reinforced foundations and bracing elements, alongside a commercial building with structural supports and a residential complex with steel frames

FAQ

What is earthquake bracing and bolting?

Earthquake bracing and bolting are construction methods used to fortify buildings against the forces of seismic activity. These techniques ensure that structures remain safe and intact during earthquakes, providing both safety and structural integrity.

Why are older homes more at risk during earthquakes?

Older homes, particularly those built before 1980, are at higher risk during earthquakes because modern seismic safety standards were not in place when they were constructed. These homes often lack the structural reinforcements necessary to withstand seismic forces.

What is foundation bolting?

Foundation bolting involves adding bolts to secure the wooden framework of a building to its concrete foundation. This is crucial to prevent the structure from sliding off its base during an earthquake.

What are the types of foundation bolts?

There are two main types of foundation bolts used in earthquake bracing:

  • Expansion Bolts: Cost-effective and ideal for newer homes with strong concrete.
  • Epoxy-Set Bolts: Suitable for older homes with weaker concrete, offering better performance under uplift forces.

What is cripple wall bracing?

Cripple wall bracing involves reinforcing the short wooden walls in crawl spaces with structural-grade plywood. This converts them into shear walls, providing additional rigidity and preventing collapse during seismic events.

What materials and tools are used for seismic retrofitting?

Key materials and tools for seismic retrofitting include:

  • Brackets: Provide support to structural joints and are made from durable metals like steel.
  • Anchors: Secure the structure to its foundation to prevent shifting and collapse.
  • Specialized Bolts: Designed to handle seismic stress, connecting elements like brackets and anchors securely.
  • Tools: High-torque impact wrenches, drills with masonry bits, measuring tools, and safety gear like gloves and eye protection.

Are there retrofit programs available in California?

Yes, California offers retrofit programs to help homeowners strengthen their homes against earthquakes. These programs provide guidelines and sometimes financial assistance for implementing earthquake bracing and bolting techniques.

Can you provide real-world examples of successful earthquake retrofitting?

Yes, there are several case studies where homes and commercial buildings successfully withstood seismic activity after being retrofitted with earthquake bracing and bolting. Techniques used include foundation bolting, cripple wall bracing, custom angle iron struts, mudsill anchor plates, and engineered steel moment frames.

Where can I find more information about earthquake retrofitting services?

For more information about earthquake retrofitting services, you can visit Foundation Builders. They provide detailed insights and professional services to enhance earthquake resilience for homes and buildings.
