A French drain is a drainage system designed to redirect water away from areas where it could cause damage, such as a home’s foundation. It consists of a trench filled with gravel and a perforated pipe, which directs water to a designated drainage area.
Introduction to French Drains
A French drain is a straightforward yet effective drainage system designed to manage and redirect water away from areas where it could cause damage, such as a home’s foundation. The system consists of:
- A trench filled with gravel
- A perforated pipe within the trench
The gravel allows water to flow through it and into the pipe, which then directs the water to a designated drainage area, like a storm drain or a suitable part of the yard.
French drains serve several purposes:
- Prevent water pooling in low spots on the property
- Redirect water away from a home’s foundation to prevent basement leaks
Key benefits include:
- Alleviating water accumulation around a foundation
- Preventing soil saturation and water seepage into basements or crawl spaces
Installation involves:
- Digging a trench with a recommended slope of 1 inch per 8 feet
- Filling the trench with gravel
- Laying a drain pipe with holes facing downward
- Wrapping the pipe in landscaping fabric to prevent clogging
- Filling the trench with more gravel, sometimes topped with soil for aesthetics
French drains are practical solutions for managing water on your property. Proper planning and installation are essential to ensure they function effectively and last for many years.
Components of a French Drain System
A French drain system is made up of several key components that work together to efficiently manage water.
- Trench: This is where the entire system is housed. It is typically sloped to encourage water movement.
- Perforated Pipe: Usually made of PVC or corrugated plastic, this pipe collects and directs water away from problem areas.
- Gravel or Crushed Stone: Surrounds the perforated pipe, allowing water to easily enter while keeping debris out.
- Filter Fabric: Wraps around the pipe and gravel, preventing soil and small particles from clogging the system.
Proper installation is crucial to ensure the effectiveness of a French drain. Ensuring these components are correctly installed will help maintain the system’s functionality and longevity. Regular inspections for clogging or damage, particularly after heavy rains, are recommended to keep the drain performing effectively.
Installation Process of a French Drain
To install a French drain, start with careful planning. Identify where water is pooling and where you want it to be redirected. Ensure this path has a slight downhill slope for effective drainage.
Steps for Installation:
- Dig the Trench: – Dig a trench from the problem area to your chosen exit point. – Ensure the trench is about 5-6 inches wide with a 1-2° slope.
- Line the Trench with Filter Fabric: – Use water-permeable fabric to line the trench. This prevents soil from clogging the drain.
- Add Gravel Bedding: – Pour and compact around 3 inches of gravel or landscape stone at the trench’s bottom. This assists in water flow.

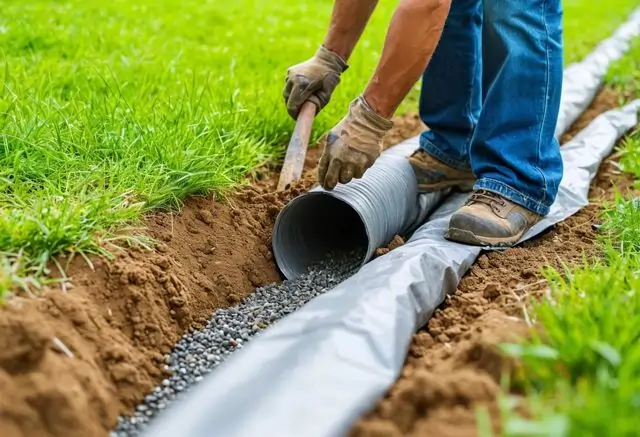

- Install the Perforated Pipe: – Place fabric-wrapped perforated pipe, usually 4-6 inches in diameter, in the trench with the perforations facing down.
- Cover with Gravel and Fabric: – Add more gravel over the pipe and wrap remaining fabric around the gravel and pipe to keep soil out.
- Backfill with Topsoil: – Once the pipe and gravel are in place, fill the trench with soil removed during digging.
Maintenance Tips:
- Regularly inspect for clogs and debris.
- Clean any blockages with a plumbing snake or a pressure washer.
- Check for any soil displacement or damage to the pipe.
By following these steps, you can successfully install a French drain to address your drainage issues, keeping your yard and foundation dry and protected.
Benefits and Applications of French Drains in Construction
French drains offer several benefits in construction, making them a popular choice for both residential and commercial projects. Here are some key advantages and applications:
Key Benefits of French Drains
- Effective Water Management: French drains efficiently channel water away from structures, preventing water accumulation and potential damage.
- Low Maintenance: Once installed, these systems require minimal upkeep. Regular inspections after heavy rainfalls help ensure longevity.
- Cost-Effective: Compared to other drainage solutions, French drains are relatively inexpensive, especially if integrated during the home construction phase.
- Eco-Friendly: Utilizing natural processes, French drains help redistribute water, making them an environmentally friendly option.
- Versatility: Suitable for various soil types and landscapes, French drains can be tailored to different environments.
- Aesthetic Appeal: When covered with sod or gravel, they blend seamlessly into the landscape, maintaining the property’s visual appeal.
Common Applications in Residential and Commercial Settings
- Residential Applications:
- Basement Waterproofing: Prevents water from seeping into basements, protecting foundations and reducing moisture-related issues. For more on basement waterproofing, click here.
- Yard Drainage: Addresses water pooling in low spots of the yard, ensuring a healthier landscape.
- Retaining Wall Drainage: Prevents water buildup behind retaining walls, thereby enhancing their stability and longevity.
- Commercial Applications:
- Building Foundations: Protects commercial building foundations from water damage, ensuring structural safety.
- Road Construction: Prevents waterlogging in road foundations, which can lead to structural weakening and damage.
By implementing French drains in both residential and commercial projects, you can effectively manage water drainage, protect structures, and maintain the overall health of your property. If you need expert assistance, contact us for professional installation and maintenance services.
FAQ
What is a French drain?
A French drain is a straightforward yet effective drainage system designed to manage and redirect water away from areas where it could cause damage, such as a home’s foundation. It consists of a trench filled with gravel and a perforated pipe within the trench.
How does a French drain work?
The gravel in the trench allows water to flow through it and into the perforated pipe, which then directs the water to a designated drainage area, like a storm drain or a suitable part of the yard.
What are the primary components of a French drain system?
- Trench: Where the entire system is housed and typically sloped to encourage water movement.
- Perforated Pipe: Collects and directs water away from problem areas.
- Gravel or Crushed Stone: Surrounds the perforated pipe, allowing water to enter while keeping debris out.
- Filter Fabric: Wraps around the pipe and gravel, preventing soil and small particles from clogging the system.
What are the steps involved in installing a French drain?
- Dig the Trench: Ensure it’s about 5-6 inches wide with a 1-2° slope.
- Line the Trench with Filter Fabric: Prevents soil from clogging the drain.
- Add Gravel Bedding: Pour and compact around 3 inches of gravel at the trench’s bottom.
- Install the Perforated Pipe: Place fabric-wrapped perforated pipe with perforations facing down.
- Cover with Gravel and Fabric: Add more gravel over the pipe and wrap the fabric around everything.
- Backfill with Topsoil: Fill the trench with soil removed during digging.
What are the maintenance tips for a French drain?
- Regularly inspect for clogs and debris.
- Clean any blockages with a plumbing snake or a pressure washer.
- Check for any soil displacement or damage to the pipe.
What are the benefits of French drains in construction?
- Effective Water Management: Efficiently channels water away from structures.
- Low Maintenance: Requires minimal upkeep with regular inspections.
- Cost-Effective: Relatively inexpensive compared to other drainage solutions.
- Eco-Friendly: Utilizes natural processes to redistribute water.
- Versatility: Suitable for various soil types and landscapes.
- Aesthetic Appeal: Can blend seamlessly into the landscape when covered with sod or gravel.
Where are French drains commonly used?
- Residential Applications:
- Basement Waterproofing: Prevents water from seeping into basements.
- Yard Drainage: Addresses water pooling in low spots of the yard.
- Retaining Wall Drainage: Prevents water buildup behind retaining walls.
- Commercial Applications:
- Building Foundations: Protects commercial building foundations from water damage.
- Road Construction: Prevents waterlogging in road foundations, ensuring structural safety.
Regularly inspect for clogs and debris to ensure longevity.
